White Silica Powder For Medium High Voltage Transformer Insulation
SILICA POWDER SAND FOR EPOXY RESIN
Product Description:
608 SILICA SAND FOR EPOXY RESIN
Features:
Crystalline silica is produced from a high purify quartz feed stock for manufacturing and
formulation of applications which require structurally sound, chemically pure or non-reactive fine mineral fillers.
Completely inert and pH neutral, we will not alter or initiate when incorporated in
Catalyzed or multi-component chemical systems, and will not degrade when employed
In extreme temperatures or harsh environments. We offers formulators a low surface
Area, minimal oil absorption to achieve high loading in coatings and cementitious systems
And stiffening in elastomeric and high performance epoxy. Chemically pure we also serves an
Excellent nonconductor in electrical assemblies and potting compounds, and a non-combustible
Filler in thermal insulating.
The grade is processed with adherence to ISO and internal quality assurance programs.
The result is chemical purity and consistently uniform particle size distributions for predictable results supported by reliable services.
Granulometric Data & Physical Characteristics
Mean values. These do not represent a specification
Residual(µm) 150 ----- %
106 0.02 %
75 0.05 %
45 1.70 %
38 7.95 %
Laser Particle size
(µm) 2 10.48 %
D10 1.87 µm
D50 18.07 µm
D90 50.34 µm
Surface Area, Blaine 1.10 m2/g
Oil Absorption 18.50 g/100g
PH 6.63
Whiteness 90.13
Bulk density, loose 0.70 g/cm3
Moisture 0.02 %
FAQ:
1. We’re using Huntsman epoxy resin, can I use JiangTe resin?
Yes,ours are equivalent to Huntsman. Please tell the number of Huntsman you’re using, we’ll offer the one matching.
2. What’s the pot life?
Pre-filled resin is one year; Pure resin is 2-3 years.

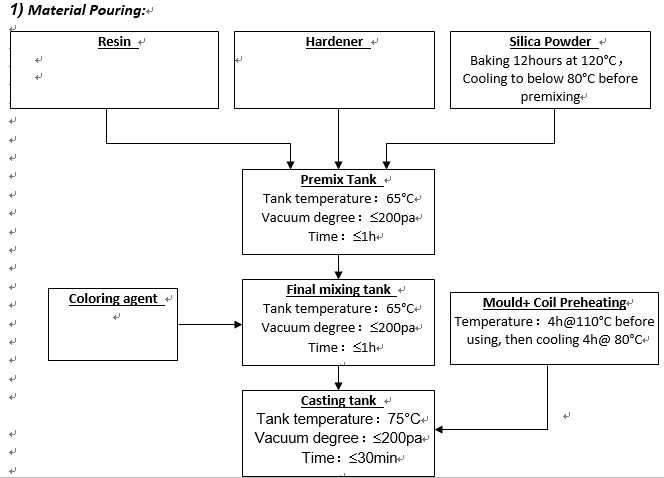

3. We’re just starting producing. Can you help us on the process?
No problem, we’ll offer guidance and support. We have thousands of customer manufacturers in China and overseas.
So we have good experiences.
